Curb-side Pickup Shelter

Ensuring schoolchildren are protected from the elements while waiting for their parents to pick them up is an important concern for any school. The prefab aluminum car covers from Japan are a perfect solution.

Adding two cantilever carports with posts sharing a footing creates a winged carport. In the picture above, you can see three of these winged ports in a row. To build this large cover, six separate carport units were combined into one big structure, spanning about 20 feet wide and 50 feet deep.

Front view of this curb-side shelter. The different port units are connected with specific profiles and connectors to ensure they are completely rainproof. Find details on the PJ-System with the PJ-Series-PDF.

Above, you see the same winged carport combination located elsewhere on the school campus, providing students with shade during recess. See details on this modern Japanese carport style see the PJ-Port-Series.

Set-back Solution

Japanese style carports for a single car generally have post only on one side. This creates a cantilevered roof. Just like the eaves of a house the cantilevered edge can reach further towards the property line than a wall or post could. In most US States you will be able to cover your car up to 2.5’ towards the side property line.

Cantilever Carport + Anchors

Adding a third post to a PJR cantilever carport gives us the option of a deeper projection of 11 feet. The third post also works in supporting higher snow loads. Take a look at the hurricane anchors featured in this project. They sit nicely tucked away at the posts and are easily set up when needed.

This is a genuine Japanese carport with polycarbonate roof panels. This particular panel type is called the Blue Smoke and is the best heat-cutting roof panel available on the market. It cuts out a whopping 83% of heat. Take a look at the huge shade it provides for the car.

You can check out all the different roof panels with this link.

4 PJW Carports Combined

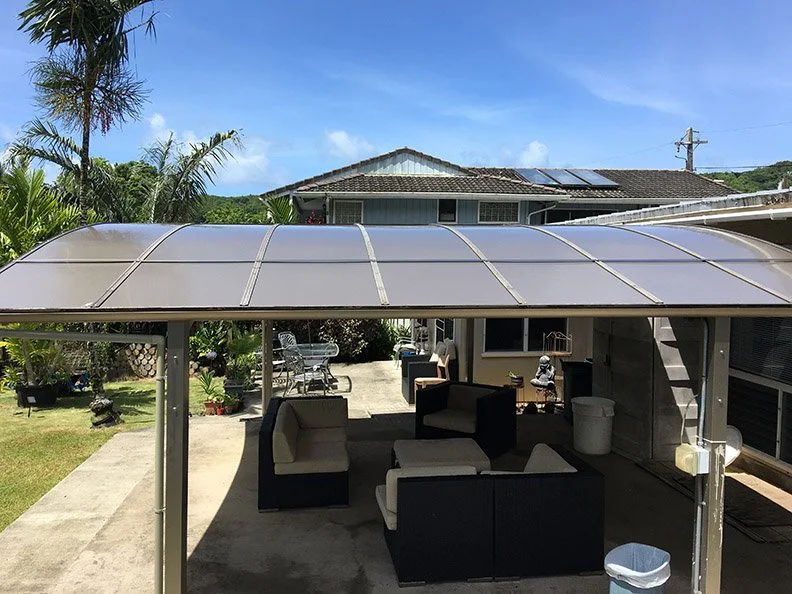

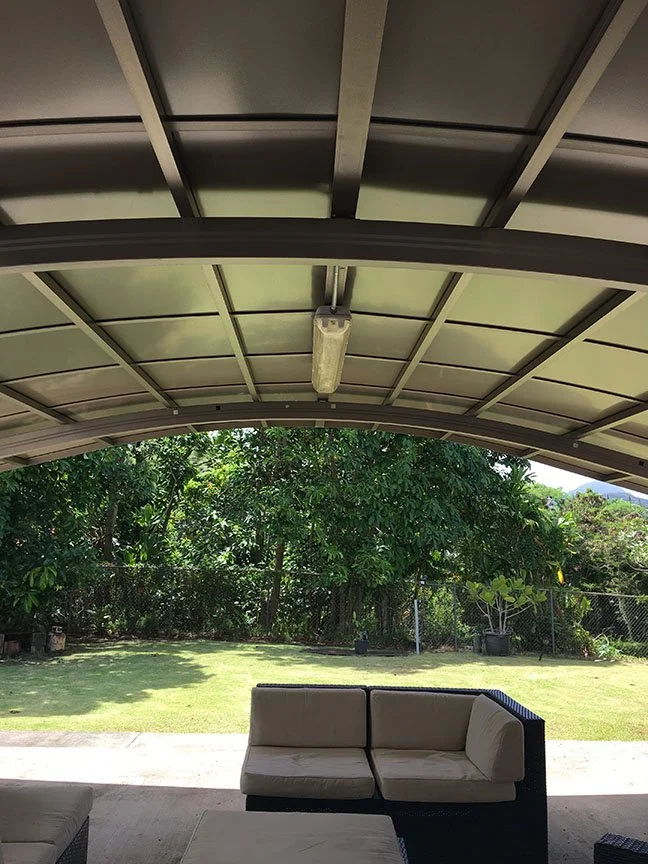

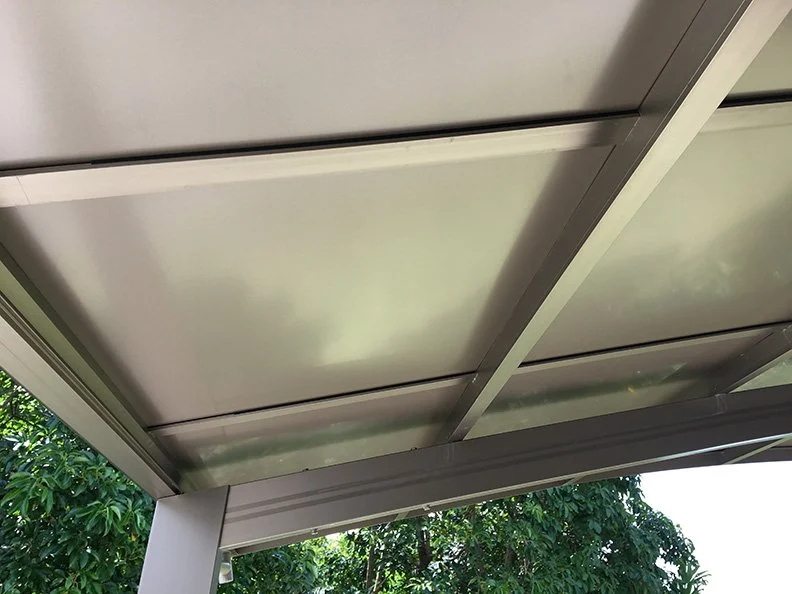

A Pre-fabricated DYI carport system can cover large parking areas. This project shows a four car cover created with two double ports in tandem and side-by-side. Specific connectors and flashings are provided to make sure the whole structure is rain tight. See image number five for a closer look at one of those connections.

Our high-tech aluminum carport structures from Japan are part of an integrated system. You can add one carport to another in the depth direction for literally unlimited depth. For expanded width, you can connect one carport unit to the next side-by-side with specific connection profiles that ensure no rainwater reaches below the canopies.

PJ carports are also a very good choice for a garden gazebo. There are several PJ ports on the job: Check them out here.

Best Cantilever Carport

This is the standard PJR cantilever carport. This project shows all the main parts beautifully, like the heat cut panel, and also the optional hurricane anchors. Posts are only on one side and out of the way. PJR 50.30

Being able to cover a car with posts only on one side has many advantages. Fewer posts mean fewer obstructions and footings. A cantilever port can also be very helpful when there are setback issues when parking close to a property line. In most US states, the setback to a post from the side property line is 5 feet; however, a roof edge or eave can extend as far as 2 1/2 feet to the property line. Here is a good example of a cantilever port going to the max of setback.

Another advantage is that a cantilevered port can extend over or under an existing roof to protect the space next to the home. Here some examples: Entry Cover Port, Car cover next to the house.

3 Car Carport

The PJ aluminum carport can cover three cars. This modern car cover in color silver (SLC) shows off the Blue Smoke heat-cut roof panels in the hot sun. It provides rain and heat protection for your car. PJR 57.80 Triple Carport

There are seven modern Japanese aluminum profile ports that can cover three cars side-by-side, available to US customers. The triple carport featured in this post is from the PJ carport series.

Pre-fabricated Japanese carports are made of aluminum profiles. Because of the manufacturing process, which involves anodization, any individual aluminum profile has a maximum length of about 19 feet. If a carport wants to stretch across further than that, a heavy-duty connection has to be created to safely connect two profiles into a longer bearing beam. The standard triple carports have a maximum width of 26 1/2 feet.

Specialty luxury ports like the U-Style carport system can employ bearing beams, reaching across for almost 40 feet.

Custom Side-Profiles

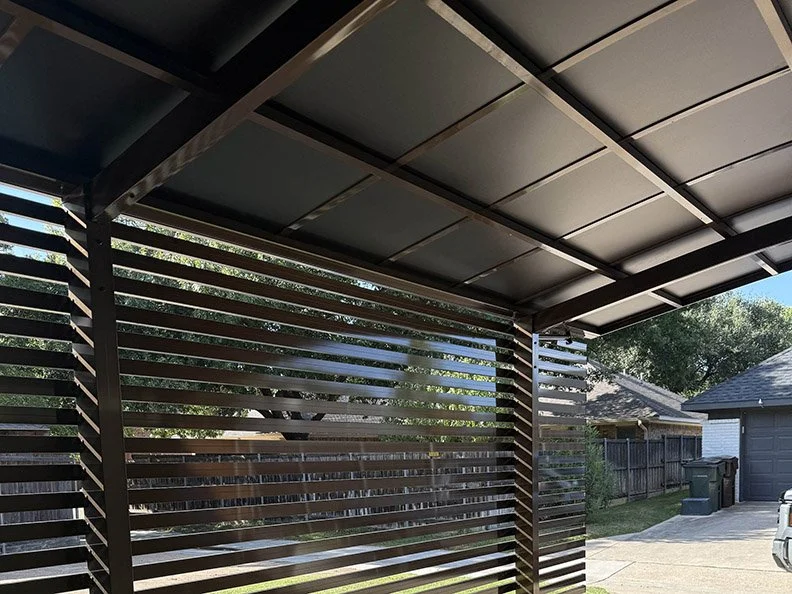

Aluminum profiles have been installed on one side of this double carport to create sunshade with a lot of ventilation.

This PJW double carport installed in Texas is among the first installations in the United States to feature the new black polycarbonate roof panel. Unlike other translucent polycarbonate roof panels, this black panel does not allow any light to pass through.

This type of roof panel is especially useful when there are big trees over the carport roof that constantly drop leaves and debris.

If you would like to see all available panels for our modern aluminum carports from Japan, use this link to the Panel Types page. Under featured projects, you will find examples of the different panels installed. When you follow the link to the Panel Info PDF, you can see an overview of all panels and their individual properties regarding heat-cutting and light transmission.

Installation by Dealer Johnary in Dallas, TX. If you are looking for a carport or patio cover in and around Dallas, TX, Contact Johnary at PatioDoctor.info. Or Call 682-333-8613.

Cover for 2 Cars In-Tandem

The modern aluminum carports from Japan can connect seamlessly to one another to create deep covered car parking spaces. As a pre-fabricated system, a carport’s depth can be literally unlimited. Because the posts are only on one side, this carport canopy can hover over the low roof without touching the ceramic tile of the house roof.

De-mountable Winged Carport

When property setback regulations prohibit a post close to the property line a winged carport with posts only in the middle can help. And if the cantilever option is still not enough, you can build a removable carport. This installation shows such an option. Stiffeners inside the posts are lag-bolted to the post profiles (sleeved) so this carport can be removed from its footings if needed.

Bike Port and Rack

This bicycle shelter on the side of a condominium is a PJR cantilever carport from Japan. With the posts only on the back end, the front side is open for the bicycles to freely move in and out of the bicycle stand, which was also fabricated in Japan.

Most Popular Carport

The PJW double carport is the favorite port hands-down. Reason is the beautiful shape and the modest price point. A 19 x 20‘ space can be effectively covered with only 4 posts and a beautiful polycarbonate canopy with an open view to the sky.

Roof-mounted Carport

Double carport plus connected cantilever single car cover. Custom installation with roof mount. The cantilever edge can cover up to 2 1/2 feet to the property line! All Japanese prefab carports can be extended in depth and width without limitation.

Ports for Condominium

These multi-unit parking covers shelter the cars of the big condominium complex. The roof panels are made from aluminum too, and provide a deep shade. The individual parking covers are connected to each other and are sealed against the rain with specific connection profiles. The basic carport style is the KCR - the predecessor of the PJR.

Carport for 3 Cars

Creating shade in front of the garage, this PJW Triple carport is mounted on top of the roof to retain easy access to the garage. Custom mounting brackets are fabricated locally.

11’ Deep Cantilever Port

This Japanese aluminum carport needs posts only on one side and still can cover 11 feet across to protect even the largest of trucks. Different post heights are available. Because of the extra deep projection, a third post is added to this unit. For projections of 10 feet or less only two posts are needed. See the beautiful shade cast by the blue smoke heat cut panel, which can cut out about 83% of heat rays and, like with all our polycarbonate panels, cuts 100% of damaging UV rays.

Pearl Highland School Cover

These outdoor shade covers provide protection from the scorching summer heat for viewers of sporting events at a school. These shade structures are four extra tall cantilever carports from the PJR series. Equipped with the best polycarbonate panel on the market, the Blue Smoke heat cut, the protective covers ensure that even in the hottest part of the day, spectators will remain comfortable in the shade.

Wall-mounted Carport

Custom mounting brackets have been fabricated for this special installation of the Japanese aluminum carport PJR. On a double carport like this, the big cross beams cannot be modified, so the walls had to be fortified to receive the mounting brackets.

Triple Carport PJWT

This aluminum carport can span 26 1/2 feet across. This one is a little narrower with 23 feet. Covering your cars with a genuine Japanese aluminum carport will keep it protected from damaging UV rays and rain, hail and snow. Noticed the matching color between port and accordion gates.

Most Popular Carport

The beautiful curve in the PJW roof shape has attracted many admirers. But this carport is not only beautiful, it is also super practical, a true marvel of Japanese engineering. This project shows the blue smoke heat cut panels. Retaining the feeling of an open sky the tinted panels keep a car comfortable even in the middle of a hot summer day.

Committal Shelter Port

The function of this large aluminum carport gazebo is to keep mourners protected during committal ceremonies at this military cemetery. Without darkening the space, the blue smoke heat cut polycarbonate panels cuts out 83% of the heat rays and 100% of UV rays.
